Description

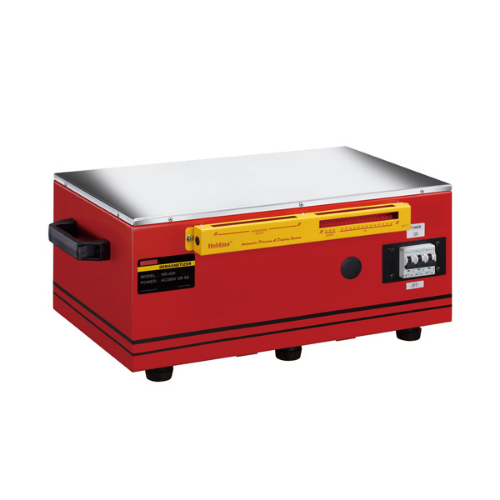

The demagnetizer is composed of multiple sets of specially designed coils. The purpose of these coils is to project the largest magnetic field in the target demagnetization area. When AC power is applied, an alternating magnetic field that changes dozens of times in one second is generated in the demagnetization area. When the workpiece enters the demagnetization zone, the magnetic domain direction in the workpiece will be rapidly changed by the influence of the alternating magnetic field.
◆The most powerful demagnetizer in Holding with the highest demagnetization thickness.
◆Special three-phase demagnetization coil design, optimizing the demagnetization performance.
◆Suitable for large-sized workpieces, thick steel plates, & molds.
◆Suitable for materials that are difficult to demagnetize, such as high carbon steel, bearing steel, nickel-chromium steel, spring steel, mold steel, etc.
◆Demagnetization range 400mm.
◆Demagnetization thickness 100 ~ 110mm.
◆Desktop machine, moving parts on the machine to demagnetize.
◆An Automatic Detection system (HD-AD11) can be installed to automatically detect the approach of the workpiece, and automatically power off if no part is coming.
◆The most powerful demagnetizer in Holding with the highest demagnetization thickness.
◆Special three-phase demagnetization coil design, optimizing the demagnetization performance.
◆Suitable for large-sized workpieces, thick steel plates, & molds.
◆Suitable for materials that are difficult to demagnetize, such as high carbon steel, bearing steel, nickel-chromium steel, spring steel, mold steel, etc.
◆Demagnetization range 400mm.
◆Demagnetization thickness 100 ~ 110mm.
◆Desktop machine, moving parts on the machine to demagnetize.
◆An Automatic Detection system (HD-AD11) can be installed to automatically detect the approach of the workpiece, and automatically power off if no part is coming.
